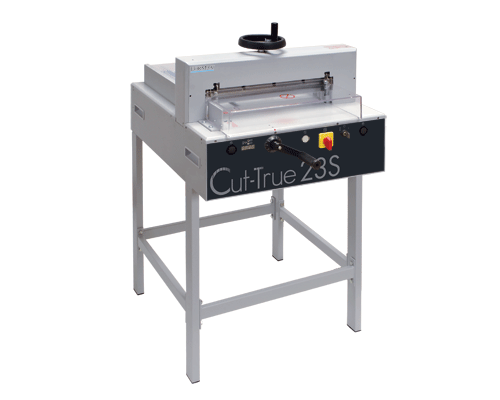

Formax Cut-True 23S Electric Paper Cutter
The Cut-True 23S Semi-Automatic Electric Cutter offers precision cutting for paper stacks up to 16.9” wide. This semi-automatic cutter requires very little effort, thanks to its electronically-controlled two-button operation. Simply load a stack of paper, up to 1.77” high, secure with the geared clamp, and press the buttons to engage the hardened-steel Guillotine blade.
Accurate cutting is easy with its spindle-guided back gauge with LED digital display and calibrated scales. Using these and the LED Laser Line, operators can make fine adjustments, and see exactly where the blade will cut.
The 23S doesn’t sacrifice safety for accuracy. In fact, it features an electronically-controlled front safety cover, transparent rear cover, safety lock with key, blade lock, external blade depth adjustment, easy blade change access from the front of the cutter, and a wooden paper push for safe alignment. The rugged metal stand is included, providing a stable work surface, as well as feet for tabletop use.
The Cut-True 23S is ideal for transforming brochures, invitations and more, with crisp, accurate cuts, and makes a welcome addition to print shops and in-plant finishing operations.
Formax Cut-True 23S Electric Paper Cutter Brochure
Features:
- Semi-automatic with electronically-controlled two-hand operation
- LED Laser cut line for pinpoint accuracy
- High-quality hardened steel blade
- Spindle-guided back gauge with LED display
- Main switch and safety lock with key
- Electronically-controlled front safety guard
- Transparent rear safety guard
- Geared clamping system
- Automatic blade return from every position
- Calibrated scale for fine adjustments, in both inches and metric
- Common paper sizes clearly marked
- Solid steel blade carrier
- Adjustable blade guides
- Blade depth adjustment from outside the cutter
- Easy blade change from front of the cutter
- Wooden paper push for safe alignment
- All-metal stand and tabletop feet included
- Blade change safety tool included
Specifications:
- Cutting Action: Dual-button electric
- Maximum Cutting Width: 16.9” (430mm)
- Maximum Paper Stack Height: 1.75” (45mm) Length Behind Blade: 17” (432mm) Length in
- Front of Blade: 8.25 (210mm)
- Narrow Cut: 1.89” (48mm)
- Table Size: 24.6” W x 27.5” D (625 x 700mm)
- LED / Laser Cut Line: Yes
- Clamp Style: Spindle-guided clamping wheel
- Back Gauge Adjustment: Manual crank
- Back Gauge Reading: Digital readout, in both inches and metric
- Blade Change Safety Tool: Included
- Dimensions: 46.75” H x 24.75” W x 33” D (1187 H x 629 W x 838 D mm)
- Weight: 198.6 lbs. (90kg)
- Power Supply: 110V
- Safety Certifications: CE approved, UL pending
Description
Formax Cut-True 23S Electric Paper Cutter
The Cut-True 23S Semi-Automatic Electric Cutter offers precision cutting for paper stacks up to 16.9” wide. This semi-automatic cutter requires very little effort, thanks to its electronically-controlled two-button operation. Simply load a stack of paper, up to 1.77” high, secure with the geared clamp, and press the buttons to engage the hardened-steel Guillotine blade.
Accurate cutting is easy with its spindle-guided back gauge with LED digital display and calibrated scales. Using these and the LED Laser Line, operators can make fine adjustments, and see exactly where the blade will cut.
The 23S doesn’t sacrifice safety for accuracy. In fact, it features an electronically-controlled front safety cover, transparent rear cover, safety lock with key, blade lock, external blade depth adjustment, easy blade change access from the front of the cutter, and a wooden paper push for safe alignment. The rugged metal stand is included, providing a stable work surface, as well as feet for tabletop use.
The Cut-True 23S is ideal for transforming brochures, invitations and more, with crisp, accurate cuts, and makes a welcome addition to print shops and in-plant finishing operations.
Formax Cut-True 23S Electric Paper Cutter Brochure
Features:
- Semi-automatic with electronically-controlled two-hand operation
- LED Laser cut line for pinpoint accuracy
- High-quality hardened steel blade
- Spindle-guided back gauge with LED display
- Main switch and safety lock with key
- Electronically-controlled front safety guard
- Transparent rear safety guard
- Geared clamping system
- Automatic blade return from every position
- Calibrated scale for fine adjustments, in both inches and metric
- Common paper sizes clearly marked
- Solid steel blade carrier
- Adjustable blade guides
- Blade depth adjustment from outside the cutter
- Easy blade change from front of the cutter
- Wooden paper push for safe alignment
- All-metal stand and tabletop feet included
- Blade change safety tool included
Specifications:
- Cutting Action: Dual-button electric
- Maximum Cutting Width: 16.9” (430mm)
- Maximum Paper Stack Height: 1.75” (45mm) Length Behind Blade: 17” (432mm) Length in
- Front of Blade: 8.25 (210mm)
- Narrow Cut: 1.89” (48mm)
- Table Size: 24.6” W x 27.5” D (625 x 700mm)
- LED / Laser Cut Line: Yes
- Clamp Style: Spindle-guided clamping wheel
- Back Gauge Adjustment: Manual crank
- Back Gauge Reading: Digital readout, in both inches and metric
- Blade Change Safety Tool: Included
- Dimensions: 46.75” H x 24.75” W x 33” D (1187 H x 629 W x 838 D mm)
- Weight: 198.6 lbs. (90kg)
- Power Supply: 110V
- Safety Certifications: CE approved, UL pending
